Box 3 Camera

The original camera, in box 3, was a no-name 1/3" model. For 2008, we have fitted a 1/2" Watec WAT-902B camera with a 3.5mm, pre-set aperture, lens. The illumination is from 14 IR LEDs. These give enough light to allow a small aperture to be set giving a wide depth of field.

The Watec camera did not like high humidity and failed on damp days. It has been replaced with a Tyco TCM2X58LV 1/2" monochrome camera.
box 3 rear

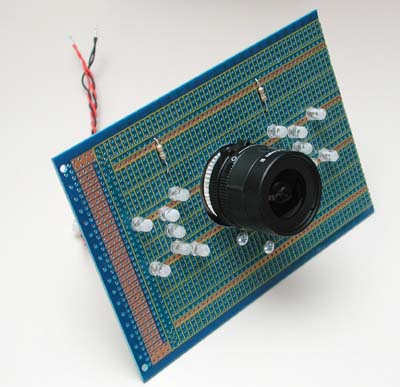

box_3_2008_front
